A wet crawl space or a basement that floods every time it rains is more than a nuisance, it could cause serious problems to your home’s foundation and everything stored down there. If you’ve been researching how to install a sump pump, you’re already thinking about the right solution. It’s one of the most effective ways to keep water from pooling where it doesn’t belong,
That said, the job involves cutting into concrete, running discharge lines, and making sure everything drains away from your foundation, not just away from the pump. Get a step wrong and you can end up right back where you started, or worse, with water damage you didn’t have before. This guide walks you through the full process so you can decide whether it’s a weekend project or a call to a pro.
At Bizzy B Plumbing, we handle sump pump installations for homeowners across Knoxville, Maryville, Alcoa, Farragut, and the surrounding East Tennessee communities. We see firsthand what older homes in this area deal with when drainage falls short. Below, we’ll break down every step, from digging the pit to testing the finished system, so you know exactly what’s involved.
Before you start: choose a pump and location
Before you touch a single tool, two decisions will shape everything else about how to install a sump pump correctly: what type of pump you buy and where you put the pit. Get these right upfront and the rest of the installation follows a logical path. Rush them and you’ll find yourself pulling the whole thing out sooner than you planned.
Pick the right pump type
Two main options cover most homes. A submersible pump sits inside the pit and runs fully underwater, which keeps it quieter and out of the way. A pedestal pump mounts above the pit with only the intake hose going down, making it easier to service but noisier during operation. For most finished basements or crawl spaces, submersible is the better fit. Also check the horsepower rating before you buy: a 1/3 HP pump handles most residential water loads, but if your basement collects serious water during heavy Tennessee rain, step up to 1/2 HP.
A pump rated for slightly more water than you expect costs a little more upfront and saves you from replacing an undersized unit after the first bad storm.
Here’s a quick comparison to guide your choice:
| Feature | Submersible | Pedestal |
|---|---|---|
| Noise level | Low | Higher |
| Typical lifespan | 5-15 years | 25-30 years |
| Maintenance access | Requires removing pump | Easy |
| Best for | Finished basements | Open, unfinished pits |
Find the best spot in your basement
Your pit should sit at the lowest point of your basement floor, where water naturally collects first. Walk the floor after a rain and look for wet patches or white mineral stains left behind when water evaporates. Those marks tell you exactly where water settles. Most installations land in a corner to keep the discharge line run short and direct. Stay clear of load-bearing walls and any structural supports running below the slab.
Step 1. Cut the floor and set the basin
This is the most physical part of how to install a sump pump, and it sets up everything that follows. Rent a concrete saw for the cutting, and pick up a hammer drill with a chisel bit to break the slab into pieces you can lift out. Expect noise, dust, and a solid few hours of work.
Mark and cut the concrete
Trace the basin outline on the floor in chalk before you make a single cut. Most basins run 18 to 24 inches in diameter, so mark two extra inches on each side to leave room for backfill. Cut along the chalk line, then break the slab into manageable pieces.
Tools you’ll need for this step:
- Concrete saw
- Hammer drill with chisel bit
- Shop vacuum for dust control
- Safety glasses and ear protection

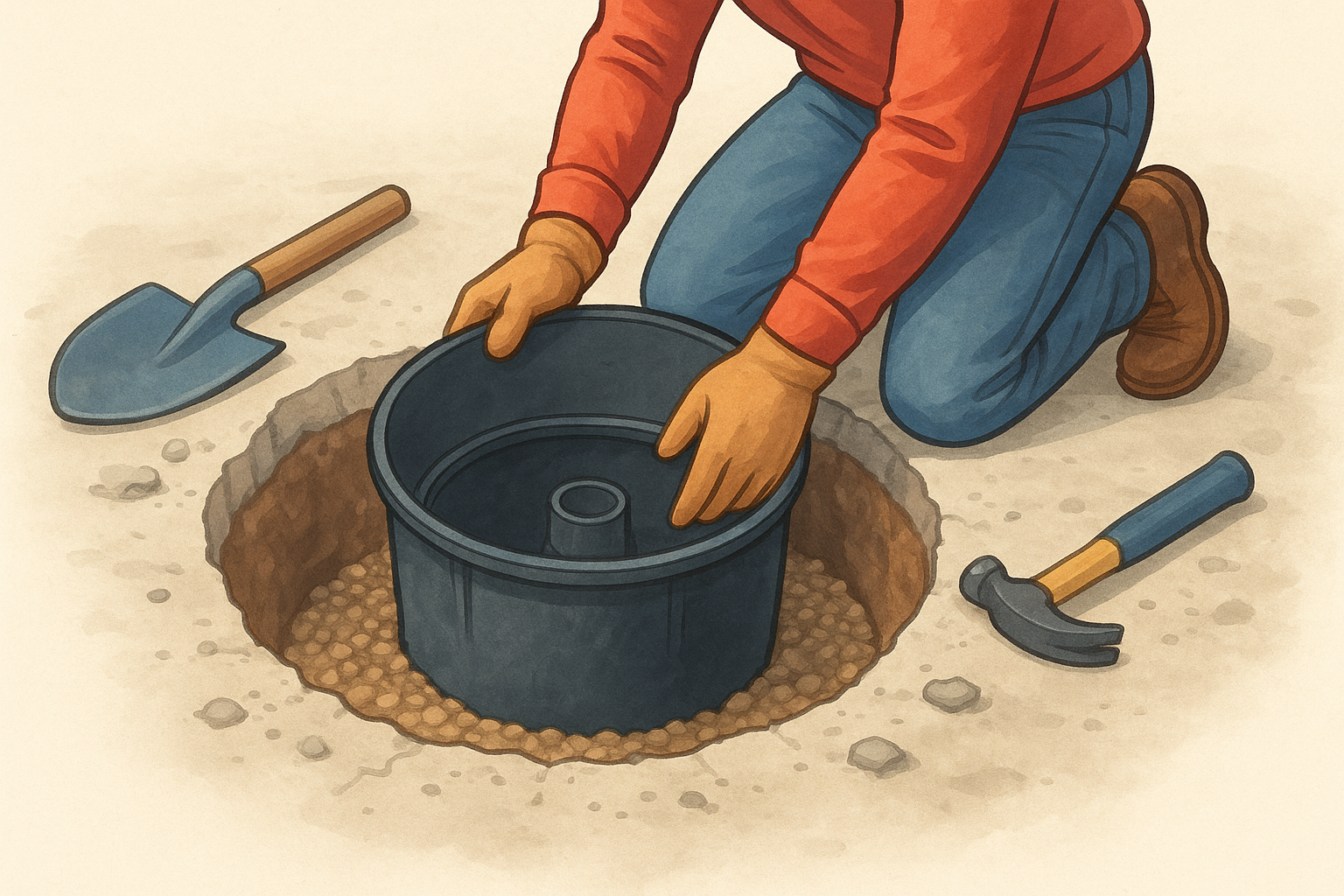

Dig the pit and drop in the basin
Dig until the top of the basin sits flush with your floor or just a hair below it. Pack the bottom with a few inches of gravel first, then lower the basin straight in.
Check that the basin sits level before moving on. A tilted basin throws off the float switch, and the pump will either run constantly or fail to kick on when water rises.
An unlevel basin is one of the most common reasons a new sump pump underperforms right from the start.
Step 2. Set the pump and add a check valve
With the basin set and level, you’re ready to drop the pump in and connect it. This step is where the system starts to take real shape. Handle the pump carefully as you lower it, and keep the power cord draped over the edge of the basin so it doesn’t tangle around the float switch during operation.
Position the pump correctly
Lower the pump straight to the bottom of the basin so it sits flat and stable. Check that the float switch has clear space to rise and fall without hitting the basin wall. If the float gets pinched, the pump won’t turn on when water rises, which defeats the whole purpose of how to install a sump pump correctly.
Install the check valve on the discharge pipe
A check valve prevents water from flowing back down into the basin after the pump shuts off. Without it, your pump cycles on and off repeatedly, wearing out much faster than it should.
- Thread the discharge pipe into the pump outlet
- Slide the check valve onto the pipe with the arrow pointing away from the pump
- Tighten the clamps firmly on both ends of the valve
Skipping the check valve is the single most common mistake on a first-time sump pump installation.
Step 3. Run the discharge line outside
The discharge line carries water from the pump to the outside of your home. Slope matters here: the pipe needs to run downhill continuously from the pump to the exit point so gravity does the work and nothing pools inside the line between pump cycles.
Choose your exit point and pipe route
Pick an exit point on an exterior wall at least 10 feet from your foundation. That distance keeps discharged water from soaking back into the ground near the house and finding its way back to the pit. Cutting corners on that distance would undermine everything you’ve done in how to install a sump pump correctly.
Run your pipe in as straight a line as possible. Each elbow you add slows water flow, so keep bends to a minimum. Use PVC pipe with solvent-weld fittings and seal every joint solidly before the line passes through the wall.
Finish the exterior end properly
Once the pipe exits the wall, angle the end downward so water drains away from your foundation. Cover the opening with a freeze-proof discharge cap or a critter guard so nothing climbs inside during dry weather.
Point the discharge toward a slope or a gravel bed, not toward a driveway or a low spot that sends water back toward your house.
Step 4. Power it up, test it, and plan for outages
With the discharge line in place, the last step in how to install a sump pump is to plug in the pump and confirm the system works before you need it. Don’t wait for a rainstorm to find out you missed something. Test it now, while everything is still accessible and easy to adjust.
Test the pump before you seal anything
Fill a five-gallon bucket with water and slowly pour it into the basin. The float switch should rise, kick the pump on, and move the water out within a minute or two. Check every connection along the discharge line for drips while the pump runs. If water backs down into the basin after the pump shuts off, the check valve needs to be reseated or tightened.
Run this test twice so you’re confident the float switch triggers reliably before you call the job done.
Plan for power outages
Heavy rain and power outages often arrive together, which is the worst time for your pump to go silent. A battery backup unit that connects to your existing basin gives you real protection when the grid goes down. Install a water alarm inside the basin as a second layer so you know immediately if water rises past the normal operating level, even when you’re asleep or away from home.
You’re ready for the next big rain
Following these steps gives you a working system that handles groundwater before it reaches your floor joists or your belongings. Every piece of the process matters, from setting the basin level in Step 1 to confirming the float switch triggers reliably in Step 4. If you cut corners on any of those steps, you’ll know it the next time a heavy storm rolls through East Tennessee.
That said, knowing how to install a sump pump is different from wanting to do it yourself. Cutting concrete, running discharge lines, and wiring a backup unit is real work, and there’s no shame in deciding your time is better spent elsewhere. If you’d rather hand it off to someone who does this regularly, sump pump and plumbing repairs in Knoxville and Blount County are exactly what Bizzy B Plumbing handles. You’ll get an upfront estimate before any work starts, and in most cases we can get there the same day you call.
